HF Series

QR code

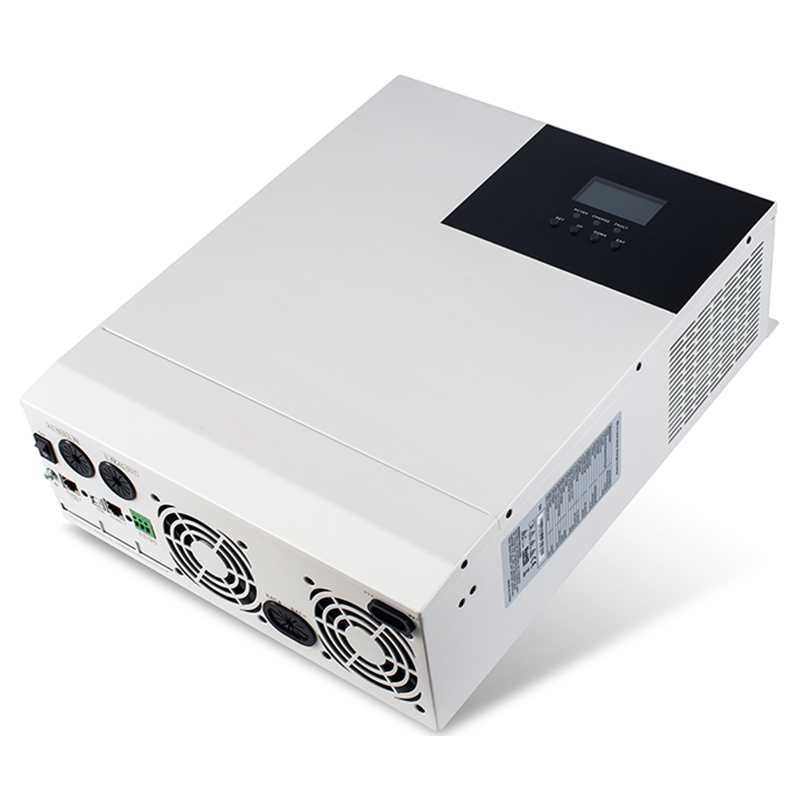

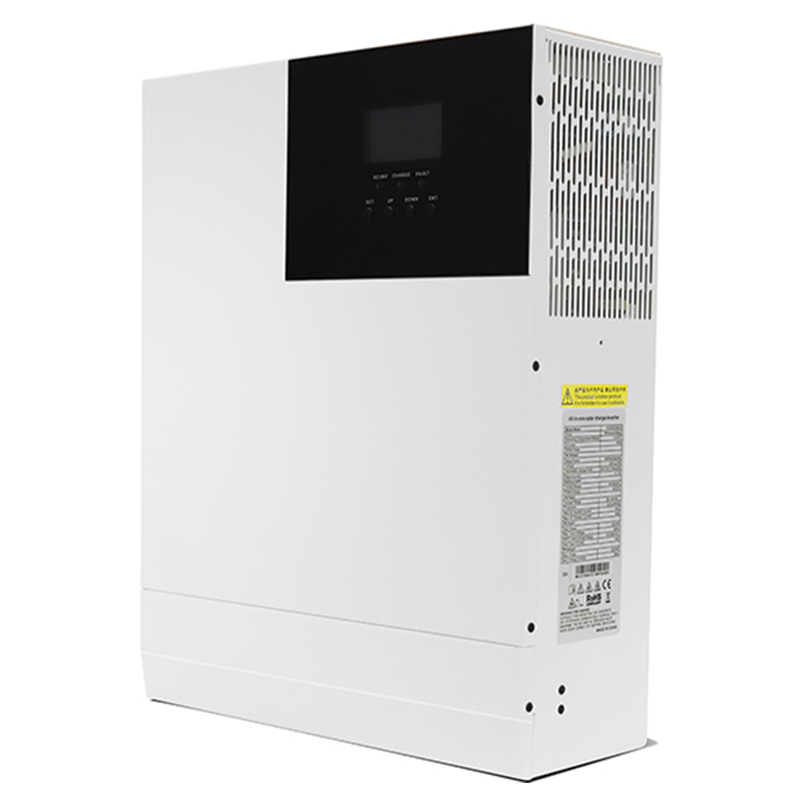

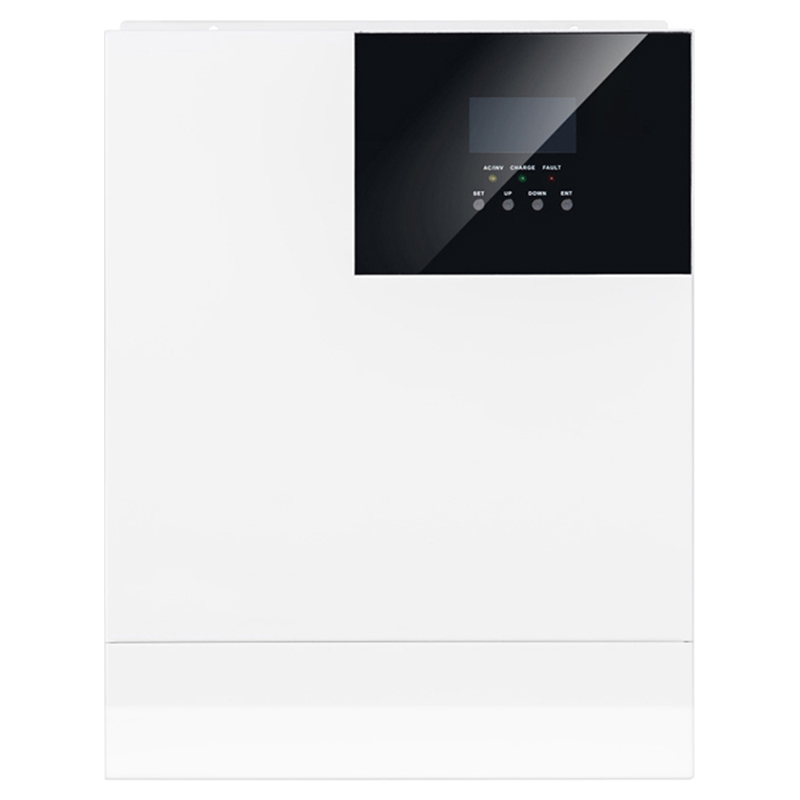

HF series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output.Four charging modes are optional, i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.
Installatiaon Vertical HF4835U60-H/HF4850U80-H
Product Name Off-Grid Inverter
Inverter Capacity 3~5kW
Battery Capacity /
Certifications IEC/EN/FCC
Inquiry Now
Detail

DATASHEET

MODEL(High Open Circuit Voltage)HF4850S80-HHF2430S80-HCAN BE SET
INVERTER OUTPUT
Rated Output Power5,000W3,300W
Max. Peak Power10,000VA6,000VA
Rated Output Voltage230Vac(Single Phase)√
Motor Load Capacity 4HP2HP
Rated AC Frequency50Hz/60Hz
BATTERY
Battery TypeLead Acid or Lithium Battery√
Rated Battery Voltage48Vdc24Vdc
Max. MPPT Charging Current80A√
Max. Mains/Generator Charging Current60A80A√
Max. Hybrid Charging Current80A√
PV INPUT
Num. of MPPT Trackers1
Max. PV Array Power5,200W4,000W
Max. Input Current18A13A
Max. PV Open Circuit Voltage500Vdc
MAINS/GENERATOR INPUT
Input Voltage Range170~280Vac√
Frequency Range50Hz/60Hz
Bypass Overload Current40A30A
GENERAL
Dimension426*322*126mm378*280*103mm
Weight10.9kg6.9kg
Protection LevelIndoor Only
Operating Temperature Range-15℃~55℃-10℃~55℃
Noise＜60dB
Cooling MethodInternal Fan



MODEL(High Open Circuit Voltage)HF4850U80-HHF4835U60-HHF2430U80-HCAN BE SET
INVERTER OUTPUT
Rated Output Power5,000W3,500W3,000W
Max. Peak Power10,000VA7,000VA6,000VA
Rated Output Voltage120Vac(Single Phase)√
Motor Load Capacity 4HP2HP2HP
Rated AC Frequency50Hz/60Hz
BATTERY
Battery TypeLead Acid or Lithium Battery√
Rated Battery Voltage
48Vdc24Vdc
Max. MPPT Charging Current80A60A80A√

Max. Mains/Generator Charging Current

40A√
Max. Hybrid Charging Current80A√
PV INPUT
Num. of MPPT Trackers1
Max. PV Array Power5,200W4,400W4,000W
Max. Input Current18A13A
Max. PV Open Circuit Voltage500Vdc
MAINS/GENERATOR INPUT
Input Voltage Range90~140Vac
Frequency Range50Hz/60Hz
Bypass Overload Current63A30A40A
GENERAL
Dimension426*322*126mm378*280*103mm
Weight10.9kg8kg
Protecton LevelIndoor Only
Operating Temperature Range-15℃~55℃-10℃~55℃
Noise＜60dB
Cooling MethodInternal Fan
MODEL(Low Open Circuit Voltage)HF4850S80-145HF4830S60-145HF2430S60-100CAN BE SET
INVERTER OUTPUT
Rated Output Power5,000W3,000W3,000W
Max. Peak Power10,000VA6,000VA6,000VA
Rated Output Voltage230Vac(Single Phase)√
Motor Load Capacity 4HP2HP2HP
Rated AC Frequency50Hz/60Hz
BATTERY
Battery TypeLead Acid or Lithium Battery√
Rated Battery Voltage48Vdc24Vdc
Max. MPPT Charging Current80A60A√

Max. Mains/Generator Charging Current

60A80A√
Max. Hybrid Charging Current140A120A140A√
PV INPUT
Num. of MPPT Trackers1
Max. PV Array Power
4,400W3,400W1,600W
Max. Input Current50A40A
Max. PV Open Circuit Voltage145Vdc100Vdc
MAINS/GENERATOR INPUT
Input Voltage Range170~280Vac
Frequency Range50Hz/60Hz
Bypass Overload Current40A30A
GENERAL
Dimension426*322*124mm378*280*103mm
Weight10.8kg6.2kg
Protection LevelIndoor Only
Operating Temperature Degree-15℃~55℃
Noise＜60dB
Cooling MethodInternal Fan
MODEL(High Open Circuit Voltage)HF4835U80-145HF4830U60-145HF2430U60-100CAN BE SET
INVERTER OUTPUT
Rated Output Power3,500W   3,000W3,000W
Max. Peak Power6000VA
Rated Output Voltage120Vac(Single Phase)√
Motor Load Capacity 2HP
Rated AC Frequency50Hz/60Hz
BATTERY
Battery TypeLead Acid or Lithium Battery√
Rated Battery Voltage48Vdc24Vdc
Max. MPPT Charging Current80A60A√
Max. Mains/Generator Charging Current40A√
Max. Hybrid Charging Current120A100A√
PV INPUT
Num. of MPPT Trackers1
Max. PV Array Power4,400W3,400W1,600W
Max. Input Current50A40A
Max. PV Open Circuit Voltage145Vdc100Vdc
MAINS/GENERATOR INPUT
Input Voltage Range90~140Vdc
Frequency Range50Hz/60Hz
Bypass Overload Current40A
GENERAL
Dimension426*322*124mm378*280*103mm
Weight10.8kg

6.2kg

6.8kg
Protection LevelIndoor Only
Operating Temperature Range-15℃~55℃
Noise＜60dB
Cooling MethodInternal Fan

FEATURES

1、Support single-phase,split-phase and three-phase pure sine wave output.

2、MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.

3、Four charging modes: solar only, mains priority, solar priority, and mixed mains/PV charging.

4、With the time-slot charging and discharging setting function, two output modes of utility bypass and inverter output.

5、360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.

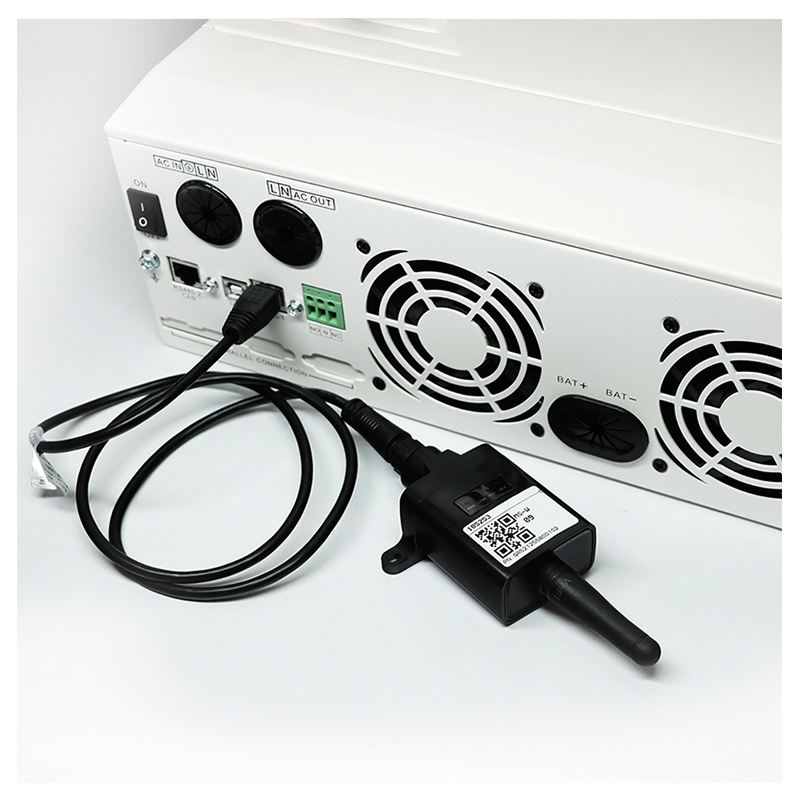

6、Support USB, RS485(WIFI/GPRS) and Dry contact control communication.
