HTP Series

QR code
HF series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output.Four charging modes are optional, i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.

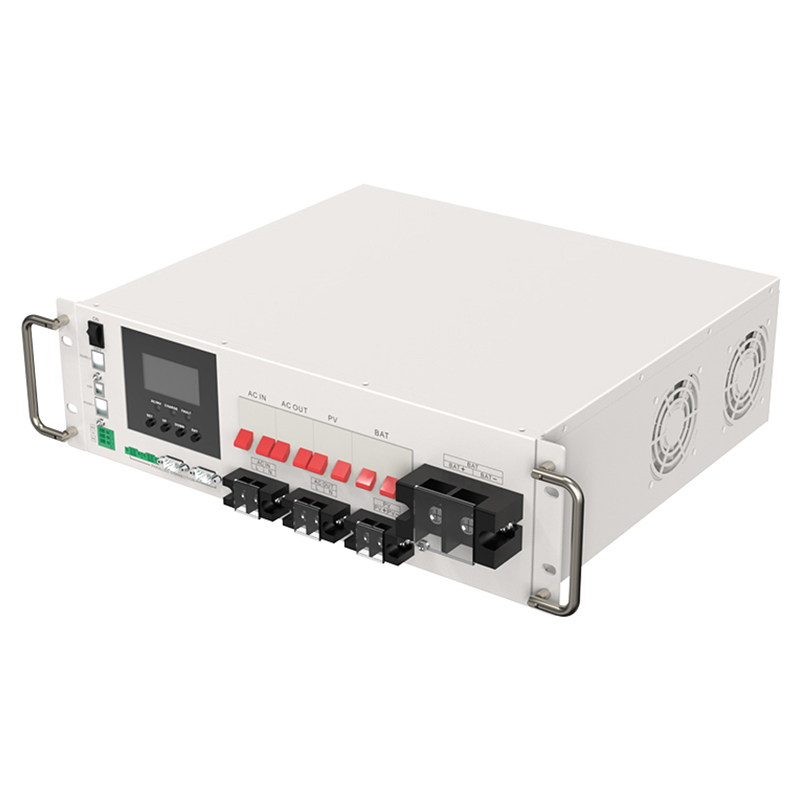

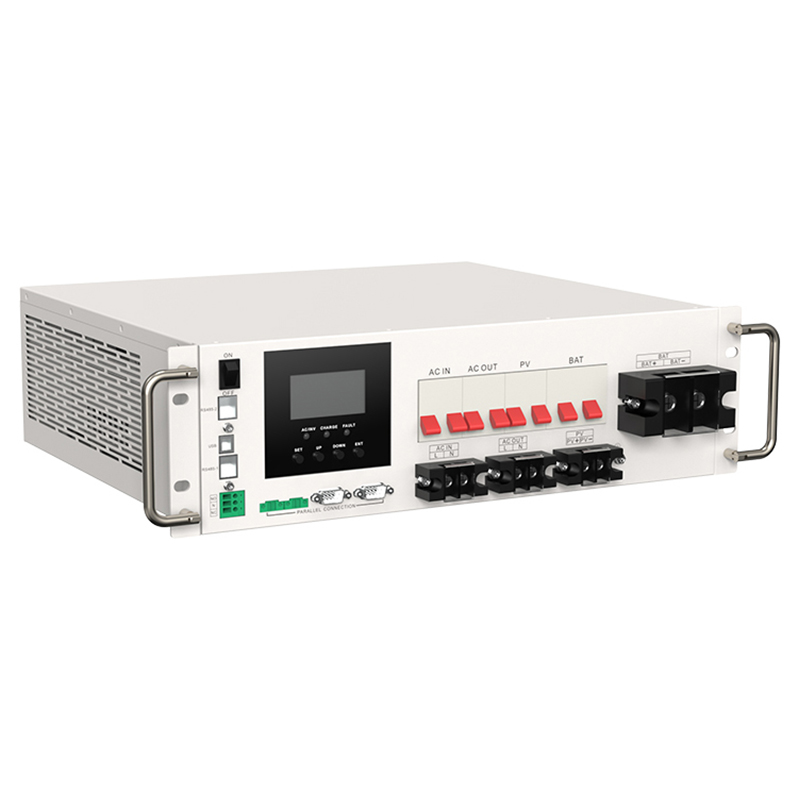

Installatiaon Vertical HTP4850S80-H
Product Name Off-Grid Inverter
Inverter Capacity 5~30kW
Battery Capacity 2 Years
Certifications CE(IEC62109-1)
Inquiry Now
Detail

DATASHEET

MODELHTP4850S80-HCAN BE SET
INVERTER OUTPUT
Rated Output Power
5,000W
Max. Peak Power10,000W
Rated Output Voltage230Vac(Single/Three Phase)√
Motor Load Capacity4HP
Rated AC Frequency50Hz/60Hz
Parallel Quantity1~6
BATTERY
Battery TypeLi-ion/Lead Acid√
Rated Battery Voltage48Vdc
Max. PV MPPT Charging Current80A√
Max. Mains/Generator Charging Current60A√
Max. Hybrid Charging Current80A√
PV INPUT
Num. of MPPT Trackers1
Max. PV Input Power5,500W
Max. Input Frequency22A
Max. PV Open Circuit Voltage500Vdc
MAINS/GENERATOR INPUT
Input Voltage Range170~280Vac√
Frequency Range50Hz/60Hz
Bypass Overload Current40A
GENERAL
Dimension482*425*133mm
Weight14kg
Protection LevelIndoor Only
Operating Temperature Range-10℃~55℃
Noise ≤60dB
Cooling MethodInternal Fan

   FEATURES

1、Support single-phase and three-phase pure sine wave output.

2、MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.

3、Four charging modes: solar only, mains priority, solar priority, and mixed mains/PV charging.

4、With the time-slot charging and discharging setting function, two output modes of utility bypass and inverter output.

5、360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.

6、Support up to 6 parallel machines up to 30kW output.
7、Support USB, RS485(WIFI/GPRS) and Dry contact control communication.

8、Easy system integration with rackmount design.


򡂈
