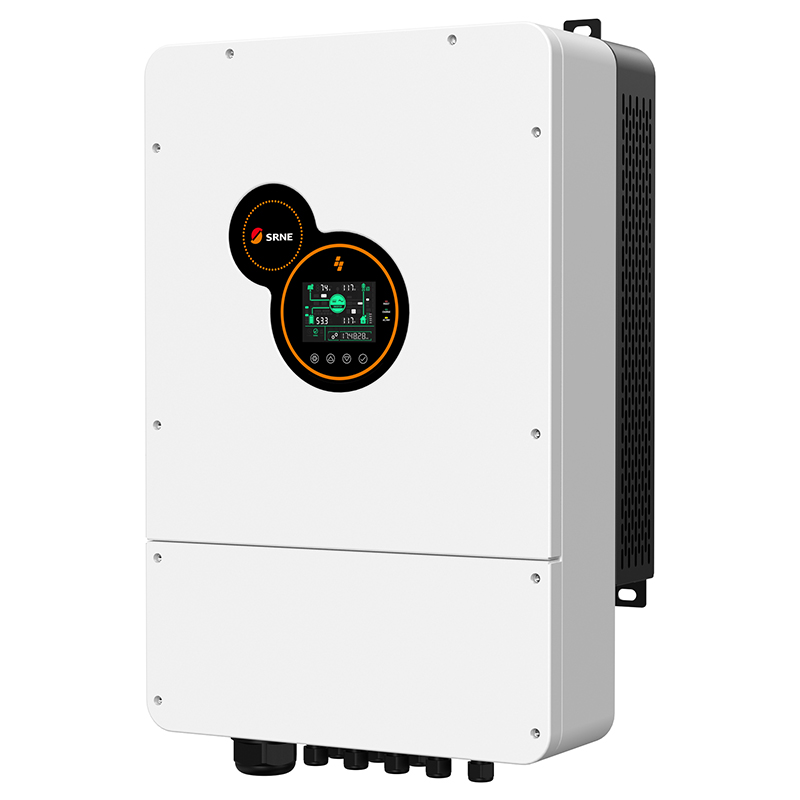

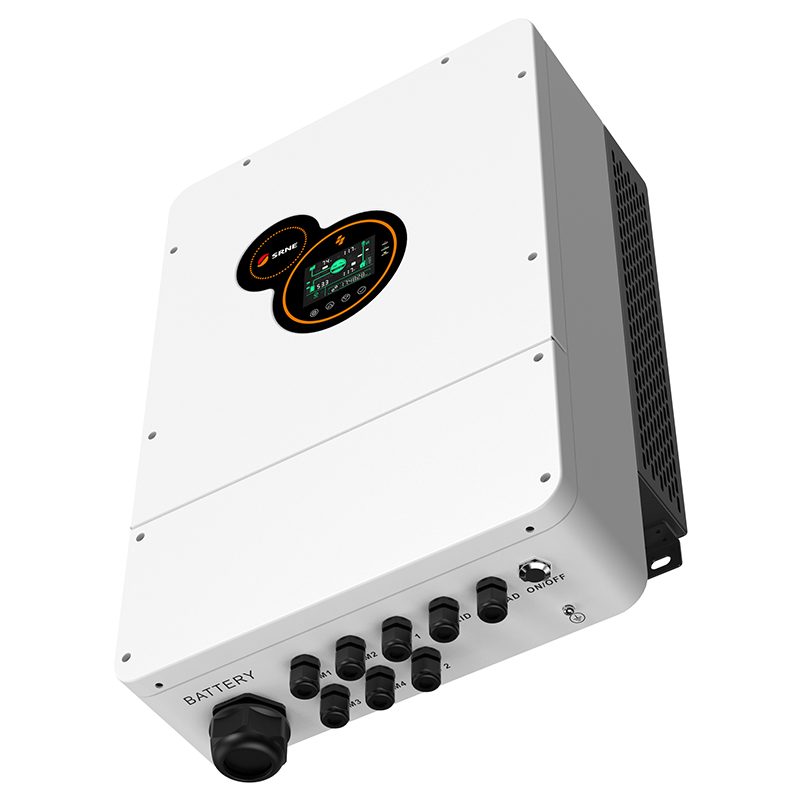

HESP Series

QR code
All-in-one Solar Charge Inverter, Hybrid Solar Power Inverter, IP65 Protection Level.
Product Name Hybrid Inverter
Inverter Capacity 5kW and 6kW
Battery Capacity 2 Years
Certifications CE(IEC62109-1)
Inquiry Now
Detail




DATASHEET

MODELHESP4850S100-HHESP4860S100-HCAN BE SET
INVERTER OUTPUT
Rated Output Power5,000W6,000W
Max. Peak Power10,000W12,000W
Rated Output Voltage230Vac(Single Phase/Three Phase)√
Motor Load Capacity4HP
Rated AC Frequency50/60Hz
Parallel Quantity1~6√
BATTERY
Battery TypeLead acid or Lithium Battery√
Rated Battery Voltage48V
Max. PV MPPT Charging Current100A√
Max. Mains/Generator Charging Current60A√
Max. Hybrid Charging Current100A√
PV INPUT
Num. of MPPT Trackers1
Max. PV Input Power5,500W6,600W
Max. Input Current22A
Max. PV Open Circuit Voltage500Vdc
MAINS/GENERATOR INPUT
Input Voltage Range170~280Vac√
Frequency Range50/60Hz
Bypass Overload Current40A
GENERAL
Dimension556*345*182mm
Weight19.2kg
Protection LevelIP65
Operating Temperature Range-25~55℃（＞45℃ derating）
Cooling MethodForced air cooling, varible speed of fan


FEATURES

1、Support off-grid, hybrid and on-grid output modes.

2、Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.

3、Four charging modes: solar only, mains priority, solar priority, and mixed mains/PV charging.

4、With time slot control setting function, two output modes of utility bypass and inverter output.

5、360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.

6、Support up to 6 parallel machines up to 36kW output.

7、IP65 protection level, can be used in outdoor environment.

8、Support USB, RS485(WIFI/GPRS),CAN and Dry contact control communication.
